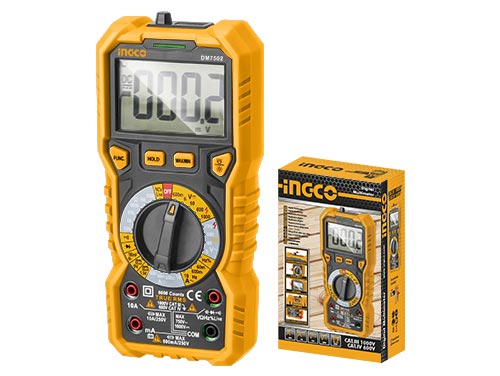

DM7502 DIGITAL MULTIMETER

Internal Reference:
Description :

    This combination does not exist.

    Display : 6000 counts true RMS
    LCD with double color backlight
    DC Voltage: 600mV/6V/60V/600V/1000V
    AC Voltage:6V/60V/600V/750V
    DC Current: 60μA/60mA/600mA/10A
    AC Current: 60mA/600mA/10A
    Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
    Capacitance:10nf/100nf/1000nf/10μF/100μF/1000μF/10mf/100mf
    Frequency:10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/10MHz
    Duty cycle: 1%~99%
    Non-contact voltage detection
    live line or neutral Line distinguish
    Diode test
    Max/Min and Data hold
    Low battery indication
    Auto power off
    With flash light function
    With input jack LED indicate
    Packed by color box
